Arc ROSU ISO 10243 - sarcina mare

Mareste imaginea

Arc ROSU ISO 10243 - sarcina mare

Brand: Special Springs

Produse similare
Arc VERDE DESCHIS - sarcina foarte mica
Arc cu spira rotunda ROSU
Arc ALB sarcina extra mare
Arc ARGINTIU ULTRA HEAVY

Arc ROSU ISO 10243 - sarcina mare.jpg

Pagina catalog - Arc ROSU

Dimensiune 472.45k

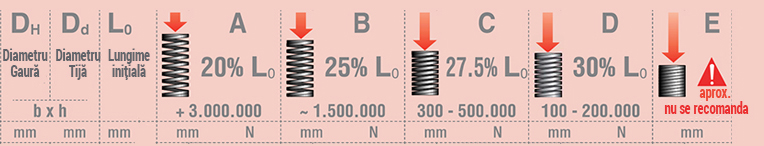

Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
R20X10220 10 102 20.4 / 902 25.5 / 1127 28.1 / 1240 30.6 / 1353 La comanda 1
R40X10240 20 102 20.4 / 3325 25.5 / 4157 28.1 / 4572 30.6 / 4988 In stoc 1
R13X10212.5 6.3 102 20.4 / 171 25.5 / 214 28.1 / 236 30.6 / 257 In stoc 1
R32X10232 16 102 20.4 / 2489 25.5 / 3111 28.1 / 3422 30.6 / 3733 La comanda 1
R25X10225 12.5 102 20.4 / 1489 25.5 / 1862 28.1 / 2048 30.6 / 2234 In stoc 1
R16X10216 8 102 20.4 / 394 25.5 / 492 28.1 / 541 30.6 / 591 In stoc 1
R63X10263 38 102 20.4 / 8935 25.5 / 11169 28.1 / 12286 30.6 / 13403 La comanda 1
R50X10250 25 102 20.4 / 4998 25.5 / 6248 28.1 / 6872 30.6 / 7497 La comanda 1
R16X11516 8 115 23.0 / 361 28.8 / 452 31.6 / 497 34.5 / 542 In stoc 1
R40X11540 20 115 23.0 / 3266 28.8 / 4090 31.6 / 4491 34.5 / 4899 In stoc 1
R25X11525 12.5 115 23.0 / 1495 28.8 / 1872 31.6 / 2056 34.5 / 2243 In stoc 1
R63X11563 38 115 23.0 / 8510 28.8 / 10656 31.6 / 11701 34.5 / 12765 La comanda 1
R20X11520 10 115 23.0 / 883 28.8 / 1106 31.6 / 1214 34.5 / 1325 La comanda 1
R32X11532 16 115 23.0 / 2461 28.8 / 3082 31.6 / 3384 34.5 / 3692 In stoc 1
R50X11550 25 115 23.0 / 4945 28.8 / 6192 31.6 / 6799 34.5 / 7418 La comanda 1
R32X12732 16 127 25.4 / 2362 31.8 / 2957 34.9 / 3248 38.1 / 3543 In stoc 1
R20X12720 10 127 25.4 / 866 31.8 / 1084 34.9 / 1191 38.1 / 1299 In stoc 1
R25X12725 12.5 127 25.4 / 1466 31.8 / 1835 34.9 / 2015 38.1 / 2198 In stoc 1
R40X12740 20 127 25.4 / 3251 31.8 / 4070 34.9 / 4470 38.1 / 4877 In stoc 1
R50X12750 25 127 25.4 / 4877 31.8 / 6106 34.9 / 6706 38.1 / 7315 In stoc 1
R63X12763 38 127 25.4 / 8458 31.8 / 10589 34.9 / 11630 38.1 / 12687 La comanda 1
R25X13925 12.5 139 28.0 / 1476 35.0 / 1845 38.2 / 2014 42.0 / 2213 In stoc 1
R32X13932 16 139 28.0 / 2408 35.0 / 3010 38.2 / 3287 42.0 / 3612 La comanda 1
R20X13920 10 139 28.0 / 868 35.0 / 1085 38.2 / 1185 42.0 / 1302 La comanda 1
R40X13940 20 139 28.0 / 3220 35.0 / 4025 38.2 / 4396 42.0 / 4830 In stoc 1
R50X13950 25 139 28.0 / 4704 35.0 / 5880 38.2 / 6422 42.0 / 7056 In stoc 1
R25X15225 12.5 152 30.4 / 1453 38.0 / 1816 41.8 / 1998 45.6 / 2180 In stoc 1
R20X15220 10 152 30.4 / 857 38.0 / 1072 41.8 / 1179 45.6 / 1286 La comanda 1
R63X15263 38 152 30.4 / 8178 38.0 / 10222 41.8 / 11244 45.6 / 12266 La comanda 1
R32X15232 16 152 30.4 / 2371 38.0 / 2964 41.8 / 3260 45.6 / 3557 La comanda 1
R40X15240 20 152 30.4 / 3192 38.0 / 3990 41.8 / 4389 45.6 / 4788 La comanda 1
R50X15250 25 152 30.4 / 4682 38.0 / 5852 41.8 / 6437 45.6 / 7022 La comanda 1
R25X17825 12.5 178 35.6 / 1460 44.5 / 1825 49.0 / 2007 53.4 / 2189 La comanda 1
R32X17832 16 178 35.6 / 2392 44.5 / 2990 49.0 / 3289 53.4 / 3588 La comanda 1
R50X17850 25 178 35.6 / 4770 44.5 / 5963 49.0 / 6559 53.4 / 7156 La comanda 1
R40X17840 20 178 35.6 / 3168 44.5 / 3961 49.0 / 4357 53.4 / 4753 In stoc 1
R63X17863 38 178 35.6 / 8046 44.5 / 10057 49.0 / 11063 53.4 / 12068 In stoc 1
R32X20332 16 203 40.6 / 2399 50.8 / 3002 55.8 / 3299 60.9 / 3599 In stoc 1
R50X20350 25 203 40.6 / 4750 50.8 / 5944 55.8 / 6532 60.9 / 7125 La comanda 1
R63X20363 38 203 40.6 / 8039 50.8 / 10058 55.8 / 11053 60.9 / 12058 In stoc 1
R40X20340 20 203 40.6 / 3126 50.8 / 3912 55.8 / 4299 60.9 / 4689 La comanda 1
R25X20325 12.5 203 40.6 / 1453 50.8 / 1819 55.8 / 1999 60.9 / 2180 In stoc 1
R40X25440 20 254 50.8 / 3099 63.5 / 3874 69.9 / 4261 76.2 / 4648 La comanda 1
R50X25450 25 254 50.8 / 4521 63.5 / 5652 69.9 / 6217 76.2 / 6782 La comanda 1
R63X25463 38 254 50.8 / 7874 63.5 / 9843 69.9 / 10827 76.2 / 11811 La comanda 1
R32X25432 16 254 50.8 / 2357 63.5 / 2946 69.9 / 3241 76.2 / 3536 La comanda 1
R32X30532 16 305 61.0 / 2318 76.3 / 2899 83.9 / 3187 91.5 / 3477 La comanda 1
R25X30525 12.5 305 61.0 / 1397 76.3 / 1747 83.9 / 1921 91.5 / 2095 La comanda 1
R50X30550 25 305 61.0 / 4453 76.3 / 5570 83.9 / 6123 91.5 / 6680 In stoc 1
R40X30540 20 305 61.0 / 3111 76.3 / 3891 83.9 / 4278 91.5 / 4667 In stoc 1
R63X30563 38 305 61.0 / 7808 76.3 / 9766 83.9 / 10736 91.5 / 11712 La comanda 1
R10X30510 5 305 61.0 / 128 76.3 / 160 83.9 / 176 91.5 / 192 In stoc 1
R13X30512.5 6.3 305 61.0 / 171 76.3 / 214 83.9 / 235 91.5 / 256 In stoc 1
R16X30516 8 305 61.0 / 433 76.3 / 542 83.9 / 596 91.5 / 650 In stoc 1
R20X30520 10 305 61.0 / 915 76.3 / 1145 83.9 / 1258 91.5 / 1373 La comanda 1
R25X2525 12.5 25 5.0 / 1875 6.3 / 2363 6.9 / 2578 7.5 / 2813 In stoc 1
R16X2516 8 25 5.0 / 379 6.3 / 477 6.9 / 520 7.5 / 568 In stoc 1
R20X2520 10 25 5.0 / 1080 6.3 / 1361 6.9 / 1485 7.5 / 1620 In stoc 1
R13X2512.5 6.3 25 5.0 / 211 6.3 / 265 6.9 / 289 7.5 / 316 In stoc 1
R10X2510 5 25 5.0 / 111 6.3 / 139 6.9 / 152 7.5 / 166 In stoc 1
R16X3216 8 32 6.4 / 338 8.0 / 422 8.8 / 465 9.6 / 507 In stoc 1
R25X3225 12.5 32 6.4 / 1901 8.0 / 2376 8.8 / 2614 9.6 / 2851 La comanda 1
R10X3210 5 32 6.4 / 112 8.0 / 140 8.8 / 154 9.6/168 In stoc 1
R13X3212.5 6.3 32 6.4 / 212 8.0 / 266 8.8 / 292 9.6 / 319 In stoc 1
R20X3220 10 32 6.4 / 1075 8.0 / 1344 8.8 / 1478 9.6 / 1613 La comanda 1
R16X3816 8 38 7.6 / 369 9.5 / 461 10.5 / 507 11.4 / 553 In stoc 1
R10X3810 5 38 7.6 / 130 9.5 / 162 10.5 / 179 11.4 / 195 In stoc 1
R32X3832 16 38 7.6 / 2949 9.5 / 3686 10.5 / 4055 11.4 / 4423 In stoc 1
R25X3825 12.5 38 7.6 / 1664 9.5 / 2081 10.5 / 2289 11.4 / 2497 In stoc 1
R13X3812.5 6.3 38 7.6 / 223 9.5 / 278 10.5 / 306 11.4 / 334 In stoc 1
R20X3820 10 38 7.6 / 980 9.5 / 1226 10.5 / 1348 11.4 / 1471 In stoc 1
R25X4425 12.5 44 8.8 / 1646 11.0 / 2057 12.1 / 2263 13.2 / 2468 In stoc 1
R16X4416 8 44 8.8 / 377 11.0 / 471 12.1 / 518 13.2 / 565 In stoc 1
R32X4432 16 44 8.8 / 2851 11.0 / 3564 12.1 / 3920 13.2 / 4277 La comanda 1
R20X4420 10 44 8.8 / 986 11.0 / 1232 12.1 / 1355 13.2 / 1478 In stoc 1
R10X4410 5 44 8.8 / 132 11.0 / 165 12.1 / 182 13.2 / 198 In stoc 1
R13X4412.5 6.3 44 8.8 / 216 11.0 / 271 12.1 / 298 13.2 / 325 In stoc 1
R16X5116 8 51 10.2 / 378 12.8 / 475 14.0 / 520 15.3 / 568 In stoc 1
R32X5132 16 51 10.2 / 2774 12.8 / 3482 14.0 / 3815 15.3 / 4162 La comanda 1
R10X5110 5 51 10.2 / 131 12.8 / 164 14.0 / 180 15.3 / 196 La comanda 1
R25X5125 12.5 51 10.2 / 1591 12.8 / 1997 14.0 / 2188 15.3 / 2387 La comanda 1
R40X5140 20 51 10.2 / 3570 12.8 / 4480 14.0 / 4909 15.3 / 5355 In stoc 1
R20X5120 10 51 10.2 / 959 12.8 / 1203 14.0 / 1318 15.3 / 1438 La comanda 1
R13X5112.5 6.3 51 10.2 / 200 12.8 / 251 14.0 / 275 15.3 / 300 In stoc 1
R16X6416 8 64 12.8 / 388 16.0 / 485 17.6 / 533 19.2 / 582 La comanda 1
R13X6412.5 6.3 64 12.8 / 192 16.0 / 240 17.6 / 264 19.2 / 288 In stoc 1
R40X6440 20 64 12.8 / 3443 16.0 / 4304 17.6 / 4734 19.2 / 5165 In stoc 1
R50X6450 25 64 12.8 / 5286 16.0 / 6608 17.6 / 7269 19.2 / 7930 In stoc 1
R20X6420 10 64 12.8 / 923 16.0 / 1154 17.6 / 1269 19.2 / 1384 La comanda 1
R10X6410 5 64 12.8 / 137 16.0 / 171 17.6 / 188 19.2 / 205 In stoc 1
R25X6425 12.5 64 12.8 / 1574 16.0 / 1968 17.6 / 2165 19.2 / 2362 In stoc 1
R32X6432 16 64 12.8 / 2714 16.0 / 3392 17.6 / 3731 19.2 / 4070 La comanda 1
R63X7663 38 76 15.2 / 9394 19.0 / 11742 20.9 / 12916 22.8 / 14090 La comanda 1
R16X7616 8 76 15.2 / 391 19.0 / 488 20.9 / 537 22.8 / 586 In stoc 1
R13X7612.5 6.3 76 15.2 / 201 19.0 / 251 20.9 / 276 22.8 / 301 In stoc 1
R10X7610 5 76 15.2 / 114 19.0 / 143 20.9 / 157 22.8 / 171 In stoc 1
R50X7650 25 76 15.2 / 5153 19.0 / 6441 20.9 / 7085 22.8 / 7729 La comanda 1
R25X7625 12.5 76 15.2 / 1505 19.0 / 1881 20.9 / 2069 22.8 / 2257 In stoc 1
R20X7620 10 76 15.2 / 907 19.0 / 1134 20.9 / 1248 22.8 / 1361 In stoc 1
R40X7640 20 76 15.2 / 3329 19.0 / 4161 20.9 / 4577 22.8 / 4993 In stoc 1
R25X8925 12.5 89 17.8 / 1495 22.3 / 1873 24.5 / 2056 26.7 / 2243 In stoc 1
R63X8963 38 89 17.8 / 9167 22.3 / 11485 24.5 / 12605 26.7 / 13751 La comanda 1
R13X8912.5 6.3 89 17.8 / 203 22.3 / 254 24.5 / 279 26.7 / 304 La comanda 1
R50X8950 25 89 17.8 / 5126 22.3 / 6422 24.5 / 7049 26.7 / 7690 In stoc 1
R40X8940 20 89 17.8 / 3382 22.3 / 4237 24.5 / 4650 26.7 / 5073 In stoc 1
R20X8920 10 89 17.8 / 899 22.3 / 1126 24.5 / 1236 26.7 / 1348 In stoc 1
R32X8932 16 89 17.8 / 2510 22.3 / 3144 24.5 / 3451 26.7 / 3765 La comanda 1
R16X8916 8 89 17.8 / 386 22.3 / 484 24.5 / 531 26.7 / 579 La comanda 1
