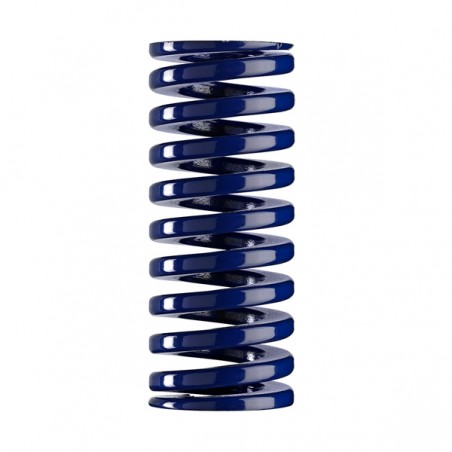

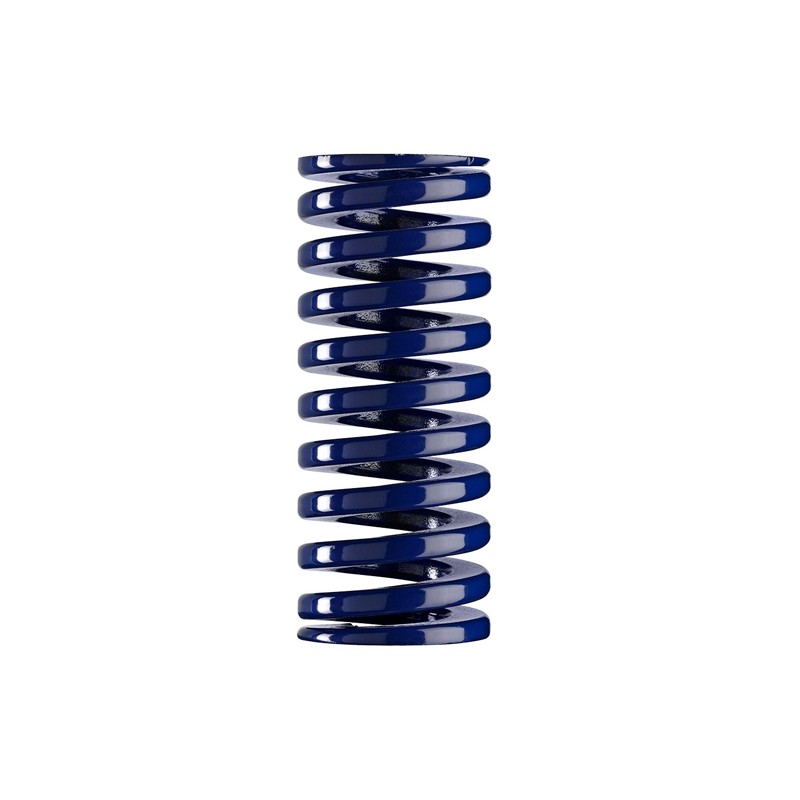

Arc ALBASTRU ISO 10243 - sarcina medie

Mareste imaginea

Arc ALBASTRU ISO 10243 - sarcina medie

Brand: Special Springs

Produse similare
Arc VERDE DESCHIS - sarcina foarte mica
Arc VERDE ISO 10243 - sarcina mica
Arc cu spira rotunda VERDE
Arc GALBEN ISO 10243 - sarcina foarte mare

Arc ALBASTRU ISO 10243 - sarcina medie_1

Pagina catalog - Arc ALBASTRU

Dimensiune 473.74k

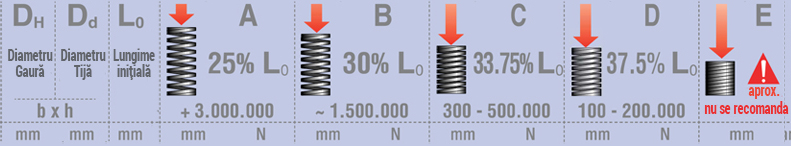

Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
B25X10225 12.5 102 25.5 / 842 30.6 / 1010 34.4 / 1136 38.3 / 1264 In stoc 1
B63X10263 38 102 25.5 / 5636 30.6 / 6763 34.4 / 7608 38.3 / 8464 In stoc 1
B32X10232 16 102 25.5 / 1499 30.6 / 1799 34.4 / 2024 38.3 / 2252 In stoc 1
B20X10220 10 102 25.5 / 505 30.6 / 606 34.4 / 682 38.3 / 758 In stoc 1
B40X10240 20 102 25.5 / 2066 30.6 / 2479 34.4 / 2788 38.3 / 3102 In stoc 1
B50X10250 25 102 25.5 / 3035 30.6 / 3641 34.4 / 4097 38.3 / 4558 In stoc 1
B13X10212.5 6.3 102 25.5 / 161 30.6 / 193 34.4 / 217 38.3 / 241 La comanda 1
B16X10216 8 102 25.5 / 344 30.6 / 413 34.4 / 465 38.3 / 517 In stoc 1
B63X11563 38 115 28.8 / 5386 34.5 / 6452 38.8 / 7258 43.1 / 8060 La comanda 1
B50X11550 25 115 28.8 / 3053 34.5 / 3657 38.8 / 4114 43.1 / 4569 La comanda 1
B32X11532 16 115 28.8 / 1483 34.5 / 1777 38.8 / 1999 43.1 / 2220 La comanda 1
B20X11520 10 115 28.8 / 521 34.5 / 624 38.8 / 703 43.1 / 780 La comanda 1
B16X11516 8 115 28.8 / 340 34.5 / 407 38.8 / 458 43.1 / 509 In stoc 1
B25X11525 12.5 115 28.8 / 806 34.5 / 966 38.8 / 1087 43.1 / 1207 In stoc 1
B40X11540 20 115 28.8 / 2068 34.5 / 2477 38.8 / 2787 43.1 / 3095 In stoc 1
B63X12763 38 127 31.8 / 5342 38.1 / 6401 42.9 / 7201 47.6 / 7997 In stoc 1
B50X12750 25 127 31.8 / 3085 38.1 / 3696 42.9 / 4158 47.6 / 4617 La comanda 1
B25X12725 12.5 127 31.8 / 824 38.1 / 987 42.9 / 1110 47.6 / 1233 In stoc 1
B32X12732 16 127 31.8 / 1425 38.1 / 1707 42.9 / 1920 47.6 / 2132 In stoc 1
B20X12720 10 127 31.8 / 528 38.1 / 632 42.9 / 712 47.6 / 790 In stoc 1
B40X12740 20 127 31.8 / 1994 38.1 / 2389 42.9 / 2687 47.6 / 2985 In stoc 1
B50X13950 25 139 35.0 / 3045 42.0 / 3654 46.9 / 4081 52.5 / 4568 La comanda 1
B25X13925 12.5 139 35.0 / 812 42.0 / 974 46.9 / 1088 52.5 / 1218 In stoc 1
B32X13932 16 139 35.0 / 1481 42.0 / 1777 46.9 / 1984 52.5 / 2221 In stoc 1
B20X13920 10 139 35.0 / 529 42.0 / 634 46.9 / 708 52.5 / 793 In stoc 1
B40X13940 20 139 35.0 / 2013 42.0 / 2415 46.9 / 2697 52.5 / 3019 In stoc 1
B50X15250 25 152 38.0 / 3040 45.6 / 3648 51.3 / 4104 57.0 / 4560 In stoc 1
B20X15220 10 152 38.0 / 500 45.6 / 600 51.3 / 677 57.0 / 750 In stoc 1
B32X15232 16 152 38.0 / 1436 45.6 / 1724 51.3 / 1939 57.0 / 2155 La comanda 1
B63X15263 38 152 38.0 / 5168 45.6 / 6202 51.3 / 6977 57.0 / 7752 La comanda 1
B25X15225 12.5 152 38.0 / 790 45.6 / 948 51.3 / 1067 57.0 / 1186 La comanda 1
B40X15240 20 152 38.0 / 1961 45.6 / 2353 51.3 / 2647 57.0 / 2941 In stoc 1
B50X17850 25 178 44.5 / 3093 53.4 / 3711 60.1 / 4175 66.8 / 4643 La comanda 1
B63X17863 38 178 44.5 / 5073 53.4 / 6088 60.1 / 6849 66.8 / 7615 La comanda 1
B32X17832 16 178 44.5 / 1446 53.4 / 1736 60.1 / 1952 66.8 / 2171 In stoc 1
B25X17825 12.5 178 44.5 / 792 53.4 / 951 60.1 / 1069 66.8 / 1189 In stoc 1
B40X17840 20 178 44.5 / 1962 53.4 / 2355 60.1 / 2649 66.8 / 2946 In stoc 1
B63X20363 38 203 50.8 / 5080 60.9 / 6090 68.5 / 6851 76.1 / 7610 La comanda 1
B25X20325 12.5 203 50.8 / 803 60.9 / 962 68.5 / 1082 76.1 / 1202 In stoc 1
B40X20340 20 203 50.8 / 1864 60.9 / 2235 68.5 / 2514 76.1 / 2793 La comanda 1
B50X20350 25 203 50.8 / 3038 60.9 / 3642 68.5 / 4097 76.1 / 4551 La comanda 1
B32X20332 16 203 50.8 / 1468 60.9 / 1760 68.5 / 1980 76.1 / 2199 In stoc 1
B63X22963 38 229 57.3 / 5111 68.7 / 6128 77.3 / 6894 85.9 / 7662 La comanda 1
B50X22950 25 229 57.3 / 2917 68.7 / 3497 77.3 / 3934 85.9 / 4372 La comanda 1
B50X25450 25 254 63.5 / 2788 76.2 / 3345 85.7 / 3763 95.3 / 4184 La comanda 1
B40X25440 20 254 63.5 / 1911 76.2 / 2294 85.7 / 2580 95.3 / 2869 La comanda 1
B63X25463 38 254 63.5 / 4978 76.2 / 5974 85.7 / 6721 95.3 / 7472 La comanda 1
B32X25432 16 254 63.5 / 1359 76.2 / 1631 85.7 / 1835 95.3 / 2039 La comanda 1
B32X30532 16 305 76.3 / 1396 91.5 / 1674 103 / 1884 114 / 2094 In stoc 1
B40X30540 20 305 76.3 / 1877 91.5 / 2251 103 / 2532 114 / 2814 La comanda 1
B50X30550 25 305 76.3 / 2945 91.5 / 3532 103 / 3973 114 / 4416 La comanda 1
B25X30525 12.5 305 76.3 / 778 91.5 / 933 103 / 1050 114 / 1167 In stoc 1
B63X30563 38 305 76.3 / 4937 91.5 / 5920 103 / 6660 114 / 7402 La comanda 1
B10X30510 5 305 76.3 / 122 91.5 / 146 103 / 165 114 / 183 In stoc 1
B13X30512.5 6.3 305 76.3 / 160 91.5 / 192 103 / 216 114 / 240 La comanda 1
B16X30516 8 305 76.3 / 366 91.5 / 439 103 / 494 114 / 549 In stoc 1
B20X30520 10 305 76.3 / 465 91.5 / 558 103 / 628 114 / 698 In stoc 1
B10X2510 5 25 6.3 / 101 7.5 / 120 8.4 / 135 9.4 / 150 In stoc 1
B16X2516 8 25 6.3 / 311 7.5 / 371 8.4 / 417 9.4 / 464 In stoc 1
B20X2520 10 25 6.3 / 617 7.5 / 735 8.4 / 827 9.4 / 921 In stoc 1
B13X2512.5 6.3 25 6.3 / 189 7.5 / 225 8.4 / 253 9.4 / 282 In stoc 1
B25X2525 12.5 25 6.3 / 926 7.5 / 1103 8.4 / 1240 9.4 / 1382 In stoc 1
B25X3225 12.5 32 8.0 / 944 9.6 / 1133 10.8 / 1274 12.0 / 1416 In stoc 1
B16X3216 8 32 8.0 / 297 9.6 / 356 10.8 / 401 12.0 / 445 In stoc 1
B20X3220 10 32 8.0 / 581 9.6 / 697 10.8 / 784 12.0 / 871 La comanda 1
B13X3212.5 6.3 32 8.0 / 198 9.6 / 238 10.8 / 268 12.0 / 298 In stoc 1
B10X3210 5 32 8.0 / 104 9.6 / 125 10.8 / 140 12.0 / 156 In stoc 1
B25X3825 12.5 38 9.5 / 884 11.4 / 1060 12.8 / 1193 14.3 / 1330 In stoc 1
B32X3832 16 38 9.5 / 1758 11.4 / 2109 12.8 / 2373 14.3 / 2646 In stoc 1
B13X3812.5 6.3 38 9.5 / 203 11.4 / 244 12.8 / 274 14.3 / 306 In stoc 1
B16X3816 8 38 9.5 / 322 11.4 / 386 12.8 / 435 14.3 / 485 In stoc 1
B10X3810 5 38 9.5 / 113 11.4 / 136 12.8 / 153 14.3 / 170 In stoc 1
B20X3820 10 38 9.5 / 532 11.4 / 638 12.8 / 718 14.3 / 801 In stoc 1
B20X4420 10 44 11.0 / 523 13.2 / 627 14.9 / 705 16.5 / 784 In stoc 1
B10X4410 5 44 11.0 / 113 13.2 / 136 14.9 / 153 16.5 / 170 In stoc 1
B13X4412.5 6.3 44 11.0 / 204 13.2 / 244 14.9 / 275 16.5 / 305 In stoc 1
B32X4432 16 44 11.0 / 1738 13.2 / 2086 14.9 / 2346 16.5 / 2607 In stoc 1
B16X4416 8 44 11.0 / 330 13.2 / 396 14.9 / 446 16.5 / 495 In stoc 1
B25X4425 12.5 44 11.0 / 889 13.2 / 1067 14.9 / 1200 16.5 / 1333 In stoc 1
B40X5140 20 51 12.8 / 2330 15.3 / 2785 17.2 / 3130 19.1 / 3476 In stoc 1
B10X5110 5 51 12.8 / 114 15.3 / 136 17.2 / 153 19.1 / 170 In stoc 1
B13X5112.5 6.3 51 12.8 / 198 15.3 / 237 17.2 / 267 19.1 / 296 In stoc 1
B32X5132 16 51 12.8 / 1715 15.3 / 2050 17.2 / 2306 19.1 / 2559 In stoc 1
B20X5120 10 51 12.8 / 534 15.3 / 638 12.8 / 718 19.1 / 796 In stoc 1
B25X5125 12.5 51 12.8 / 878 15.3 / 1050 17.2 / 1181 19.1 / 1310 La comanda 1
B16X5116 8 51 12.8 / 338 15.3 / 404 17.2 / 454 19.1 / 504 La comanda 1
B13X6412.5 6.3 64 16.0 / 194 19.2 / 232 21.6 / 261 24.0 / 290 In stoc 1
B25X6425 12.5 64 16.0 / 848 19.2 / 1018 21.6 / 1145 24.0 / 1272 In stoc 1
B16X6416 8 64 16.0 / 328 19.2 / 394 21.6 / 443 24.0 / 492 In stoc 1
B10X6410 5 64 16.0 / 120 19.2 / 144 21.6 / 162 24.0 / 180 In stoc 1
B50X6450 25 64 16.0 / 3344 19.2 / 4013 21.6 / 4514 24.0 / 5016 In stoc 1
B20X6420 10 64 16.0 / 517 19.2 / 620 21.6 / 698 24.0 / 775 In stoc 1
B32X6432 16 64 16.0 / 1584 19.2 / 1901 21.6 / 2138 24.0 / 2376 In stoc 1
B40X6440 20 64 16.0 / 2240 19.2 / 2688 21.6 / 3024 24.0 / 3360 La comanda 1
B20X7620 10 76 19.0 / 477 22.8 / 572 25.7 / 644 28.5 / 715 In stoc 1
B16X7616 8 76 19.0 / 338 22.8 / 406 25.7 / 457 28.5 / 507 In stoc 1
B10X7610 5 76 19.0 / 101 22.8 / 121 25.7 / 136 28.5 / 151 La comanda 1
B13X7612.5 6.3 76 19.0 / 194 22.8 / 233 25.7 / 262 28.5 / 291 In stoc 1
B25X7625 12.5 76 19.0 / 821 22.8 / 985 25.7 / 1108 28.5 / 1231 In stoc 1
B40X7640 20 76 19.0 / 2052 22.8 / 2462 25.7 / 2770 28.5 / 3078 La comanda 1
B63X7663 38 76 19.0 / 5928 22.8 / 7114 25.7 / 8003 28.5 / 8892 La comanda 1
B32X7632 16 76 19.0 / 1530 22.8 / 1835 25.7 / 2065 28.5 / 2294 In stoc 1
B50X7650 25 76 19.0 / 3192 22.8 / 3830 25.7 / 4309 28.5 / 4788 In stoc 1
B25X8925 12.5 89 22.3 / 852 26.7 / 1020 30.0 / 1147 33.4 / 1276 La comanda 1
B63X8963 38 89 22.3 / 5798 26.7 / 6942 30.0 / 7810 33.4 / 8684 La comanda 1
B13X8912.5 6.3 89 22.3 / 187 26.7 / 224 30.0 / 252 33.4 / 281 In stoc 1
B50X8950 25 89 22.3 / 3122 26.7 / 3738 30.0 / 4205 33.4 / 4676 In stoc 1
B40X8940 20 89 22.3 / 2023 26.7 / 2422 30.0 / 2724 33.4 / 3029 In stoc 1
B20X8920 10 89 22.3 / 491 26.7 / 587 30.0 / 661 33.4 / 735 In stoc 1
B32X8932 16 89 22.3 / 1541 26.7 / 1845 30.0 / 2076 33.4 / 2308 In stoc 1
B16X8916 8 89 22.3 / 339 26.7 / 406 30.0 / 457 33.4 / 508 In stoc 1
1
