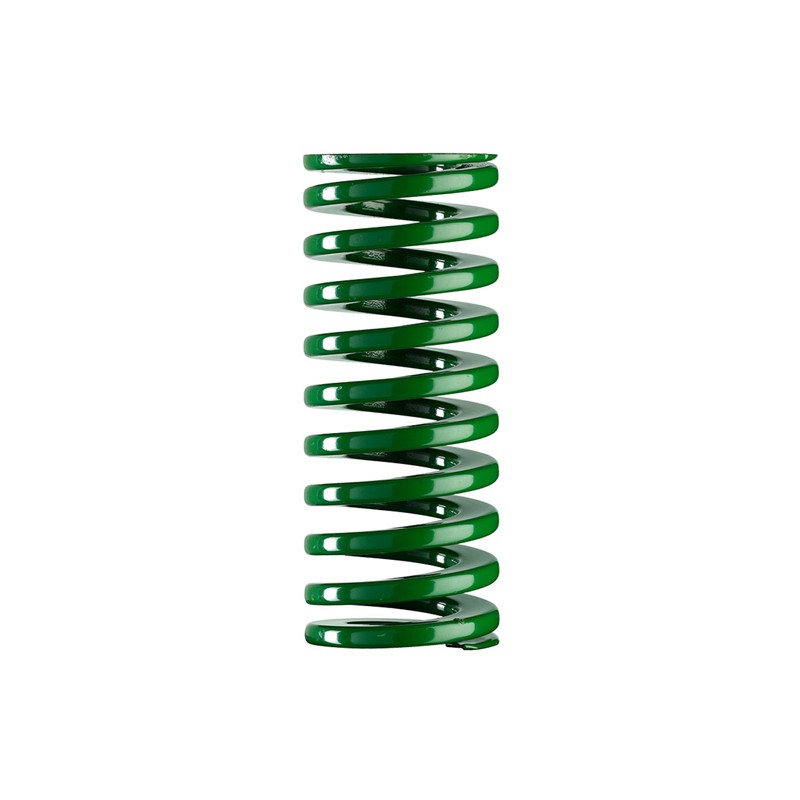

Arc VERDE ISO 10243 - sarcina mica

Mareste imaginea

Arc VERDE ISO 10243 - sarcina mica

Brand: Special Springs

Produse similare

Arc GALBEN ISO 10243 - sarcina foarte mare

Arc VERDE DESCHIS - sarcina foarte mica

Arc ROSU ISO 10243 - sarcina mare

Arc cu spira rotunda ROSU

Descriere produs
Descarca fisiere

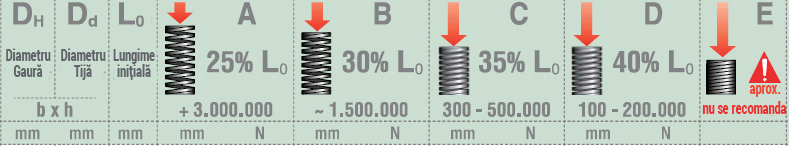

Legenda Cod Tehnic

Pagina catalog - Arc VERDE

Dimensiune 451k

Cod produs	DH mm	Dd mm	L0 mm	A mm/N	B mm/N	C mm/N	D mm/N	Stoc	Mod ambalare
V25X102	25	12.5	102	25.5 / 538	30.6 / 646	35.7 / 753	40.8 / 861	In stoc	1
V63X102	63	38	102	25.5 / 3341	30.6 / 4009	35.7 / 4677	40.8 / 5345	La comanda	1
V32X102	32	16	102	25.5 / 816	30.6 / 979	35.7 / 1142	40.8 / 1306	In stoc	1
V20X102	20	10	102	25.5 / 306	30.6 / 367	35.7 / 428	40.8 / 490	In stoc	1
V40X102	40	20	102	25.5 / 1097	30.6 / 1316	35.7 / 1535	40.8 / 1754	La comanda	1
V50X102	50	25	102	25.5 / 2397	30.6 / 2876	35.7 / 3356	40.8 / 3835	In stoc	1
V13X102	12.5	6.3	102	25.5 / 105	30.6 / 125	35.7 / 146	40.8/167	La comanda	1
V16X102	16	8	102	25.5 / 199	30.6 / 239	35.7 / 278	40.8 / 318	La comanda	1
V63X115	63	38	115	28.8 / 3341	34.5 / 4002	40.3 / 4669	46.0 / 5336	La comanda	1
V50X115	50	25	115	28.8 / 2333	34.5 / 2795	40.3 / 3260	46.0 / 3726	La comanda	1
V32X115	32	16	115	28.8 / 835	34.5 / 1001	40.3 / 1167	46.0 / 1334	La comanda	1
V20X115	20	10	115	28.8 / 314	34.5 / 376	40.3 / 439	46.0 / 501	In stoc	1
V16X115	16	8	115	28.8 / 190	34.5 / 228	40.3 / 266	46.0 / 304	In stoc	1
V25X115	25	12.5	115	28.8 / 539	34.5 / 645	40.3 / 753	46.0 / 860	In stoc	1
V40X115	40	20	115	28.8 / 1140	34.5 / 1366	40.3 / 1594	46.0 / 1822	In stoc	1
V63X127	63	38	127	31.8 / 3275	38.1 / 3924	44.5 / 4578	50.8 / 5232	La comanda	1
V50X127	50	25	127	31.8 / 2258	38.1 / 2705	44.5 / 3156	50.8 / 3607	La comanda	1
V25X127	25	12.5	127	31.8 / 531	38.1 / 636	44.5 / 742	50.8 / 848	In stoc	1
V32X127	32	16	127	31.8 / 795	38.1 / 953	44.5 / 1111	50.8 / 1270	La comanda	1
V20X127	20	10	127	31.8 / 302	38.1 / 362	44.5 / 422	50.8 / 483	In stoc	1
V40X127	40	20	127	31.8 / 1177	38.1 / 1410	44.5 / 1645	50.8 / 1880	La comanda	1
V25X139	25	12.5	139	35.0 / 536	42.0 / 643	48.7 / 744	56.0 / 857	In stoc	1
V32X139	32	16	139	35.0 / 805	42.0 / 966	48.7 / 1119	56.0 / 1288	In stoc	1
V20X139	20	10	139	35.0 / 294	42.0 / 353	48.7 / 409	56.0 / 470	La comanda	1
V50X139	50	25	139	35.0 / 2328	42.0 / 2793	48.7 / 3235	56.0 / 3724	La comanda	1
V40X139	40	20	139	35.0 / 1120	42.0 / 1344	48.7 / 1557	56.0 / 1792	La comanda	1
V63X152	63	38	152	38.0 / 3203	45.6 / 3844	53.2 / 4485	60.8 / 5125	La comanda	1
V20X152	20	10	152	38.0 / 285	45.6 / 342	53.2 / 399	60.8 / 456	In stoc	1
V32X152	32	16	152	38.0 / 817	45.6 / 980	53.2 / 1144	60.8 / 1307	In stoc	1
V25X152	25	12.5	152	38.0 / 532	45.6 / 638	53.2 / 745	60.8 / 851	La comanda	1
V40X152	40	20	152	38.0 / 1064	45.6 / 1277	53.2 / 1490	60.8 / 1702	In stoc	1
V50X152	50	25	152	38.0 / 2280	45.6 / 2736	53.2 / 3192	60.8 / 3648	La comanda	1
V40X178	40	20	178	44.5 / 1121	53.4 / 1346	62.3 / 1570	71.2 / 1794	La comanda	1
V63X178	63	38	178	44.5 / 3182	53.4 / 3818	62.3 / 4454	71.2 / 5091	La comanda	1
V32X178	32	16	178	44.5 / 810	53.4 / 972	62.3 / 1134	71.2 / 1296	In stoc	1
V50X178	50	25	178	44.5 / 2314	53.4 / 2777	62.3 / 3240	71.2 / 3702	La comanda	1
V25X178	25	12.5	178	44.5 / 556	53.4 / 668	62.3 / 779	71.2 / 890	In stoc	1
V63X203	63	38	203	50.8 / 3134	60.9 / 3758	71.1 / 4384	81.2 / 5010	La comanda	1
V25X203	25	12.5	203	50.8 / 528	60.9 / 633	71.1 / 739	81.2 / 844	In stoc	1
V40X203	40	20	203	50.8 / 1153	60.9 / 1382	71.1 / 1613	81.2 / 1843	La comanda	1
V32X203	32	16	203	50.8 / 803	60.9 / 962	71.1 / 1123	81.2 / 1283	In stoc	1
V50X203	50	25	203	50.8 / 2235	60.9 / 2680	71.1 / 3126	81.2 / 3573	La comanda	1
V50X254	50	25	254	63.5 / 2223	76.2 / 2667	88.9 / 3112	102 / 3556	La comanda	1
V40X254	40	20	254	63.5 / 1080	76.2 / 1295	88.9 / 1511	102 / 1727	La comanda	1
V63X254	63	38	254	63.5 / 2985	76.2 / 3581	88.9 / 4178	102 / 4775	La comanda	1
V32X254	32	16	254	63.5 / 794	76.2 / 953	88.9 / 1111	102 / 1270	In stoc	1
V32X305	32	16	305	76.3 / 786	91.5 / 942	107 / 1100	122 / 1257	In stoc	1
V40X305	40	20	305	76.3 / 1129	91.5 / 1354	107 / 1580	122 / 1806	La comanda	1
V50X305	50	25	305	76.3 / 2175	91.5 / 2608	107 / 3042	122 / 3477	La comanda	1
V63X305	63	38	305	76.3 / 2915	91.5 / 3495	107 / 4078	122 / 4660	La comanda	1
V25X305	25	12.5	305	76.3 / 534	91.5 / 641	107 / 747	122 / 854	La comanda	1
V10x305	10	5	305	76.3 / 84	91.5 / 101	107 / 117	122/134	In stoc	1
V16X305	16	8	305	76.3 / 191	91.5 / 229	107 / 267	122 / 305	In stoc	1
V13X305	12.5	6.3	305	76.3 / 107	91.5 / 128	107 / 149	122/171	In stoc	1
V20X305	20	10	305	76.3 / 305	91.5 / 366	107 / 427	122 / 488	La comanda	1
V25X25	25	12.5	25	6.3 / 630	7.5 / 750	8.8 / 875	10.0 / 1000	In stoc	1
V13X25	12.5	6.3	25	6.3 / 113	7.5 / 134	8.8 / 157	10.0/179	In stoc	1
V16X25	16	8	25	6.3 / 147	7.5 / 176	8.8 / 205	10.0 / 234	In stoc	1
V20X25	20	10	25	6.3 / 352	7.5 / 419	8.8 / 488	10.0 / 558	In stoc	1
V10X25	10	5	25	6.3 / 63	7.5 / 75	8.8 / 88	10.0/100	In stoc	1
V13X32	12.5	6.3	32	8.0 / 131	9.6 / 157	11.2 / 184	12.8/210	In stoc	1
V10X32	10	5	32	8.0 / 68	9.6 / 82	11.2 / 95	12.8/109	In stoc	1
V20X32	20	10	32	8.0 / 360	9.6 / 432	11.2 / 504	12.8 / 576	In stoc	1
V16X32	16	8	32	8.0 / 183	9.6 / 220	11.2 / 256	12.8 / 293	In stoc	1
V25X32	25	12.5	32	8.0 / 642	9.6 / 771	11.2 / 899	12.8 / 1028	In stoc	1
V20X38	20	10	38	9.5 / 316	11.4 / 380	13.3 / 443	15.2 / 506	In stoc	1
V13X38	12.5	6.3	38	9.5 / 129	11.4 / 155	13.3 / 181	15.2/207	In stoc	1
V16X38	16	8	38	9.5 / 183	11.4 / 220	13.3 / 257	15.2 / 293	In stoc	1
V25X38	25	12.5	38	9.5 / 589	11.4 / 707	13.3 / 825	15.2 / 942	In stoc	1
V32X38	32	16	38	9.5 / 893	11.4 / 1072	13.3 / 1250	15.2 / 1429	In stoc	1
V10X38	10	5	38	9.5 / 65	11.4 / 78	13.3 / 90	15.2/103	In stoc	1
V16X44	16	8	44	11.0 / 188	13.2 / 226	15.4 / 263	17.6 / 301	In stoc	1
V32X44	32	16	44	11.0 / 875	13.2 / 1049	15.4 / 1224	17.6 / 1399	La comanda	1
V20X44	20	10	44	11.0 / 330	13.2 / 396	15.4 / 462	17.6 / 528	In stoc	1
V13X44	12.5	6.3	44	11.0 / 133	13.2 / 160	15.4 / 186	17.6/213	La comanda	1
V10X44	10	5	44	11.0 / 66	13.2 / 79	15.4 / 92	17.6/106	In stoc	1
V25X44	25	12.5	44	11.0 / 582	13.2 / 698	15.4 / 815	17.6 / 931	La comanda	1
V10X51	10	5	51	12.8 / 64	15.3 / 77	17.9 / 89	20.4/102	La comanda	1
V13X51	12.5	6.3	51	12.8 / 146	15.3 / 174	17.9 / 203	20.4/233	In stoc	1
V25X51	25	12.5	51	12.8 / 563	15.3 / 673	17.9 / 785	20.4 / 898	La comanda	1
V32X51	32	16	51	12.8 / 858	15.3 / 1025	17.9 / 1196	20.4 / 1367	In stoc	1
V16X51	16	8	51	12.8 / 201	15.3 / 240	17.9 / 280	20.4 / 320	In stoc	1
V40X51	40	20	51	12.8 / 1178	15.3 / 1408	17.9 / 1642	20.4 / 1877	In stoc	1
V20X51	20	10	51	12.8 / 314	15.3 / 375	17.9 / 437	20.4 / 500	La comanda	1
V13X64	12.5	6.3	64	16.0 / 149	19.2 / 179	22.4 / 208	25.6/238	In stoc	1
V40X64	40	20	64	16.0 / 1168	19.2 / 1402	22.4 / 1635	25.6 / 1869	In stoc	1
V32X64	32	16	64	16.0 / 848	19.2 / 1018	22.4 / 1187	25.6 / 1357	La comanda	1
V50X64	50	25	64	16.0 / 2496	19.2 / 2995	22.4 / 3494	25.6 / 3994	La comanda	1
V10X64	10	5	64	16.0 / 69	19.2 / 83	22.4 / 96	25.6/110	La comanda	1
V20X64	20	10	64	16.0 / 320	19.2 / 384	22.4 / 448	25.6 / 512	La comanda	1
V25X64	25	12.5	64	16.0 / 563	19.2 / 676	22.4 / 788	25.6 / 901	In stoc	1
V16X64	16	8	64	16.0 / 171	19.2 / 205	22.4 / 240	25.6 / 274	La comanda	1
V32X76	32	16	76	19.0 / 836	22.8 / 1003	26.6 / 1170	30.4 / 1338	La comanda	1
V10X76	10	5	76	19.0 / 61	22.8 / 73	26.6 / 65	30.4 /97	In stoc	1
V20X76	20	10	76	19.0 / 304	22.8 / 365	26.6 / 426	30.4 / 486	In stoc	1
V63X76	63	38	76	19.0 / 3591	22.8 / 4309	26.6 / 5027	30.4 / 5746	In stoc	1
V16X76	16	8	76	19.0 / 190	22.8 / 228	26.6 / 266	30.4 / 304	In stoc	1
V13X76	12.5	6.3	76	19.0 / 135	22.8 / 162	26.6 / 189	30.4/216	In stoc	1
V40X76	40	20	76	19.0 / 1197	22.8 / 1436	26.6 / 1676	30.4 / 1915	La comanda	1
V25X76	25	12.5	76	19.0 / 532	22.8 / 638	26.6 / 745	30.4 / 851	La comanda	1
V50X76	50	25	76	19.0 / 2375	22.8 / 2850	26.6 / 3325	30.4 / 3800	La comanda	1
V13X89	12.5	6.3	89	22.3 / 120	26.7 / 144	31.2 / 168	35.6/192	In stoc	1
V63X89	63	38	89	22.3 / 3523	26.7 / 4219	31.2 / 4922	35.6 / 5625	La comanda	1
V40X89	40	20	89	22.3 / 1137	26.7 / 1362	31.2 / 1589	35.6 / 1816	In stoc	1
V50X89	50	25	89	22.3 / 2431	26.7 / 2910	31.2 / 3395	35.6 / 3880	In stoc	1
V20X89	20	10	89	22.3 / 312	26.7 / 374	31.2 / 436	35.6 / 498	In stoc	1
V32X89	32	16	89	22.3 / 830	26.7 / 993	31.2 / 1159	35.6 / 1324	In stoc	1
V16X89	16	8	89	22.3 / 192	26.7 / 230	31.2 / 268	35.6 / 306	In stoc	1
V25X89	25	12.5	89	22.3 / 535	26.7 / 641	31.2 / 748	35.6 / 854	La comanda	1
