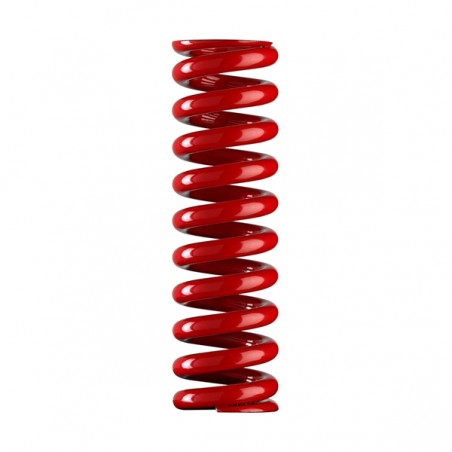

Arc cu spira rotunda ROSU

Mareste imaginea

Arc cu spira rotunda ROSU

Brand: Special Springs

Produse similare
Arc ARGINTIU ULTRA HEAVY
Arc GALBEN ISO 10243 - sarcina foarte mare
Arc ROSU ISO 10243 - sarcina mare
Arc VERDE DESCHIS - sarcina foarte mica

Arc cu spira rotunda ROSIE_1.jpg

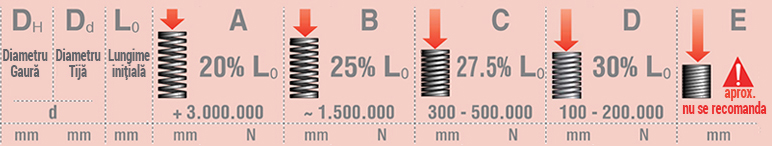

Pagina catalog - Arc ROSU

Dimensiune 200.96k
Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
TR1002510 5 25 5.0 / 103 6.3 / 129 6.9 / 142 7.5 / 155 In stoc 50
TR1602516 8 25 5.0 / 408 6.3 / 510 6.9 / 561 7.5 / 612 La comanda 50
TR1302512.5 6.3 25 5.0 / 187 6.3 / 234 6.9 / 258 7.5 / 281 La comanda 50
TR1303212.5 6.3 32 6.4 / 185 8.0 / 231 8.8 / 254 9.6 / 277 La comanda 50
TR1003210 5 32 6.4 / 103 8.0 / 129 8.8 / 142 9.6 / 155 La comanda 50
TR1603216 8 32 6.4 / 392 8.0 / 490 8.8 / 539 9.6 / 588 La comanda 50
TR1003810 5 38 7.6 / 98 9.5 / 123 10.5 / 136 11.4 / 148 La comanda 50
TR1303812.5 6.3 38 7.6 / 178 9.5 / 223 10.5 / 246 11.4 / 268 La comanda 50
TR1603816 8 38 7.6 / 379 9.5 / 474 10.5 / 521 11.4 / 569 La comanda 25
TR1004410 5 44 8.8 / 96 11.0 / 119 12.1 / 132 13.2 / 143 La comanda 50
TR1604416 8 44 8.8 / 359 11.0 / 449 12.1 / 494 13.2 / 539 La comanda 25
TR1304412.5 6.3 44 8.8 / 173 11.0 / 216 12.1 / 237 13.2 / 259 La comanda 25
TR1005110 5 51 10.2 / 98 12.8 / 123 14.0 / 135 15.3 / 147 La comanda 25
TR1605116 8 51 10.2 / 363 12.8 / 453 14.0 / 499 15.3 / 544 La comanda 25
TR1305112.5 6.3 51 10.2 / 177 12.8 / 221 14.0 / 243 15.3 / 265 La comanda 25
TR1606416 8 64 12.8 / 356 16.0 / 446 17.6 / 489 19.2 / 535 La comanda 25
TR1306412.5 6.3 64 12.8 / 173 16.0 / 216 17.6 / 238 19.2 / 259 La comanda 25
TR1006410 5 64 12.8 / 98 16.0 / 123 17.6 / 136 19.2 / 147 La comanda 25
TR1307612.5 6.3 76 15.2 / 170 19.0 / 213 20.9 / 234 22.8 / 256 La comanda 25
TR1007610 5 76 15.2 / 96 19.0 / 119 20.9 / 132 22.8 / 143 La comanda 25
TR1607616 8 76 15.2 / 346 19.0 / 433 20.9 / 477 22.8 / 519 La comanda 20
TR1308912.5 6.3 89 17.8 / 168 22.3 / 210 24.5 / 233 26.7 / 252 La comanda 20
TR1608916 8 89 17.8 / 349 22.3 / 436 24.5 / 480 26.7 / 524 La comanda 20
TR1610216 8 102 20.4 / 347 25.5 / 433 28.1 / 477 30.6 / 520 La comanda 20
TR1330512.5 6.3 305 61.0 / 162 76.3 / 203 83.9 / 226 91.5 / 244 La comanda 10
TR1030510 5 305 61.0 / 93 76.3 / 116 83.9 / 126 91.5 / 139 La comanda 10
TR1630516 8 305 61.0 / 330 76.3 / 413 83.9 / 453 91.5 / 495 La comanda 10
50
