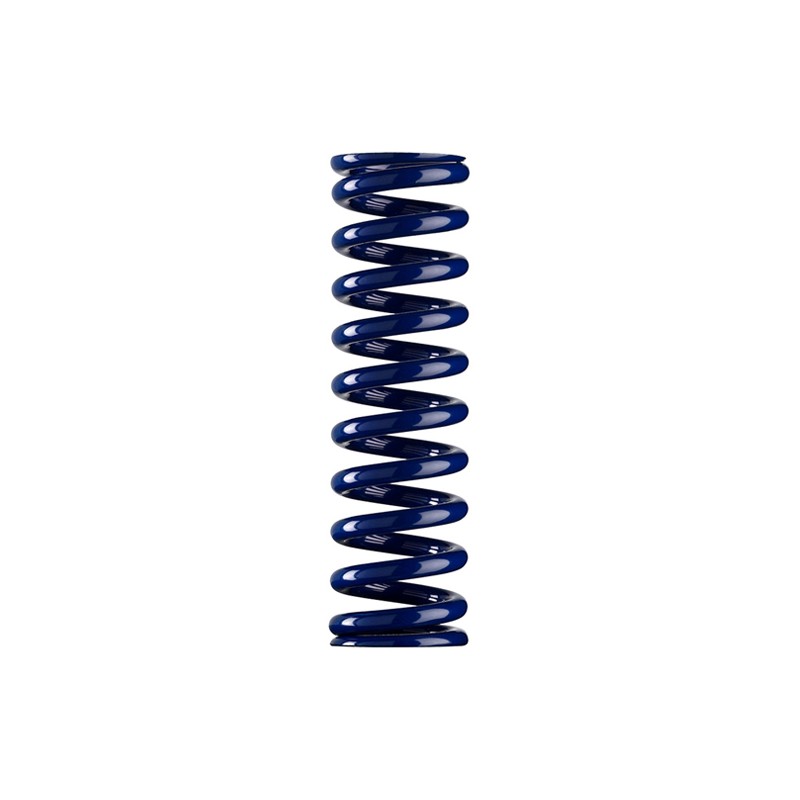

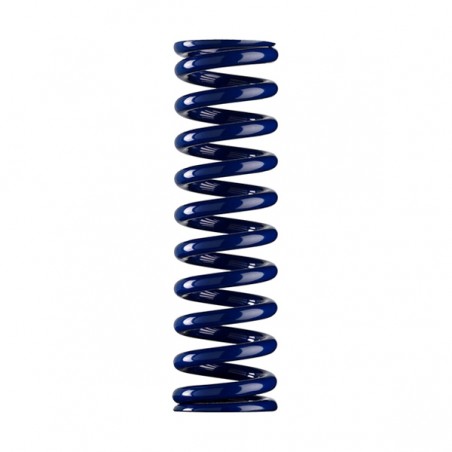

Arc cu spira rotunda ALBASTRA

Mareste imaginea

Arc cu spira rotunda ALBASTRA

Brand: Special Springs

Produse similare
Arc cu spira rotunda VERDE
Arc ALBASTRU ISO 10243 - sarcina medie
Arc VERDE ISO 10243 - sarcina mica
Arc cu spira rotunda ROSU

Arc cu spira rotunda ALBASTRA_1.jpg

Pagina catalog - Arc ALBASTRU

Dimensiune 200.12k

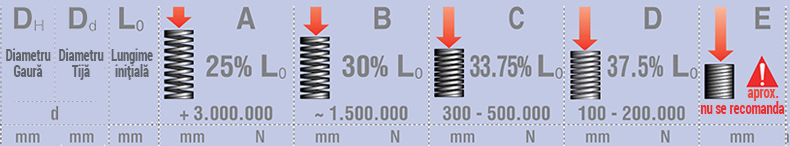

Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
TB1002510 5 25 6.3 / 77 7.5 / 92 8.4 / 104 9.4 / 115 La comanda 50
TB1602516 8 25 6.3 / 199 7.5 / 239 8.4 / 269 9.4 / 299 La comanda 50
TB1302512.5 6.3 25 6.3 / 136 7.5 / 163 8.4 / 183 9.4 / 204 La comanda 50
TB1303212.5 6.3 32 8.0 / 134 7.5 / 163 10.8 / 181 12.0 / 202 La comanda 50
TB1003210 5 32 8.0 / 76 9.6 / 91 10.8 / 103 12.0 / 113 La comanda 50
TB1603216 8 32 8.0 / 192 9.6 / 230 10.8 / 259 12.0 / 288 La comanda 50
TB1003810 5 38 9.5 / 74 11.4 / 88 12.8 / 100 14.3 / 111 In stoc 50
TB1303812.5 6.3 38 9.5 / 131 11.4 / 158 12.8 / 177 14.3 / 197 La comanda 50
TB1603816 8 38 9.5 / 185 11.4 / 222 12.8 / 249 14.3 / 277 La comanda 25
TB1004410 5 44 11.0 / 72 13.2 / 86 14.9 / 97 16.5 / 108 In stoc 50
TB1604416 8 44 11.0 / 177 13.2 / 213 14.9 / 239 16.5 / 266 La comanda 25
TB1304412.5 6.3 44 11.0 / 127 13.2 / 153 14.9 / 172 16.5 / 191 La comanda 25
TB1005110 5 51 12.8 / 72 15.3 / 86 17.2 / 96 19.1 / 108 La comanda 25
TB1605116 8 51 12.8 / 176 15.3 / 212 17.2 / 238 19.1 / 265 La comanda 25
TB1305112.5 6.3 51 12.8 / 127 15.3 / 153 17.2 / 172 19.1 / 191 La comanda 25
TB1606416 8 64 16.0 / 171 19.2 / 205 21.6 / 231 24.0 / 256 La comanda 25
TB1306412.5 6.3 64 16.0 / 125 19.2 / 150 21.6 / 168 24.0 / 187 In stoc 25
TB1006410 5 64 16.0 / 71 19.2 / 86 21.6 / 97 24.0 / 107 La comanda 25
TB1307612.5 6.3 76 19.0 / 122 22.8 / 146 25.7 / 164 28.5 / 183 La comanda 25
TB1007610 5 76 19.0 / 70 22.8 / 84 25.7 / 95 28.5 / 105 La comanda 25
TB1607616 8 76 19.0 / 166 22.8 / 200 25.7 / 226 28.5 / 250 La comanda 20
TB1308912.5 6.3 89 19.0 / 122 26.7 / 150 30.0 / 168 33.4 / 188 La comanda 20
TB1608916 8 89 22.3 / 167 26.7 / 200 30.0 / 225 33.4 / 250 La comanda 20
TB1610216 8 102 25.5 / 167 30.6 / 200 34.4 / 224 38.3 / 250 La comanda 20
TB1330512.5 6.3 305 76.3 / 118 91.5 / 141 103 / 154 114 / 176 La comanda 10
TB1030510 5 305 76.3 / 68 91.5 / 82 103 / 93 114 / 102 La comanda 10
TB1630516 8 305 76.3 / 159 91.5 / 191 103 / 216 114 / 238 La comanda 10
50
