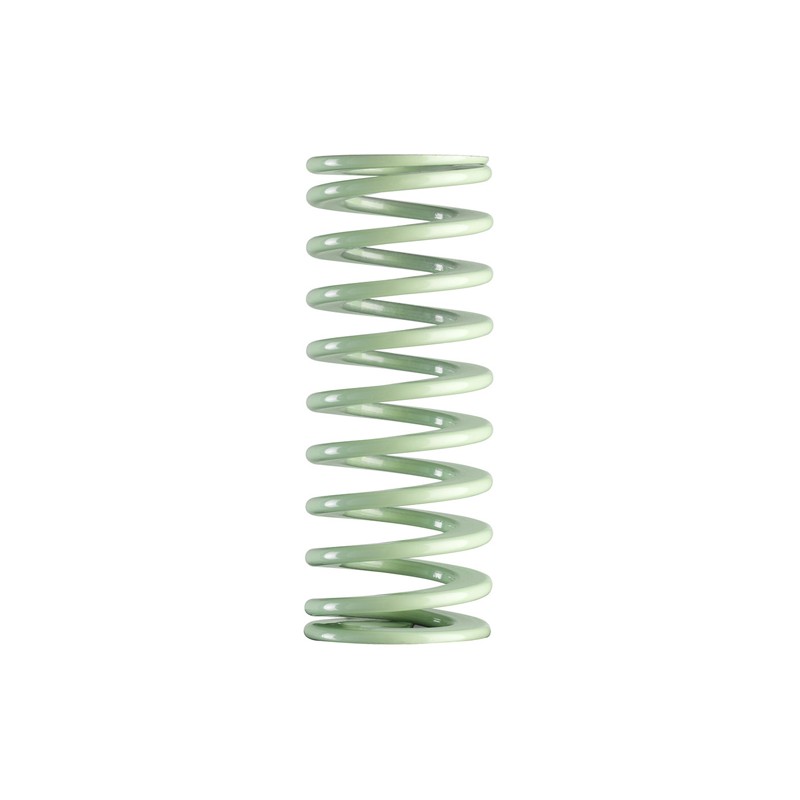

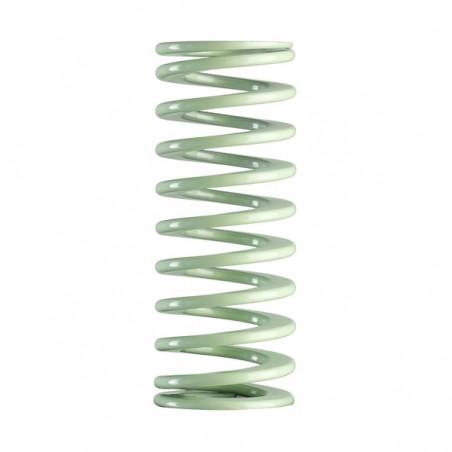

Arc VERDE DESCHIS - sarcina foarte mica

Mareste imaginea

Arc VERDE DESCHIS - sarcina foarte mica

Brand: Special Springs

Produse similare
Arc cu spira rotunda ROSU
Arc ROSU ISO 10243 - sarcina mare
Arc VERDE ISO 10243 - sarcina mica
Arc ARGINTIU ULTRA HEAVY

Arc VERDE DESCHIS - sarcina foarte mica_

Pagina catalog - Arc VERDE

Dimensiune 468.61k

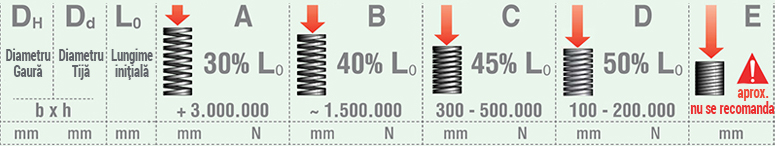

Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
VL20X10220 10 102 30.6 / 226 40.8 / 302 45.9 / 340 51.0 / 377 La comanda 20
VL50X10250 25 102 30.6 / 1591 40.8 / 2122 45.9 / 2387 51.0 / 2652 La comanda 5
VL40X10240 20 102 30.6 / 750 40.8 / 1000 45.9 / 1125 51.0 / 1250 La comanda 10
VL25X10225 12.5 102 30.6 / 404 40.8 / 539 45.9 / 606 51.0 / 673 La comanda 20
VL32X10232 16 102 30.6 / 480 40.8 / 641 45.9 / 721 51.0 / 801 La comanda 10
VL20X11520 10 115 34.5 / 221 46.0 / 294 51.8 / 331 57.5 / 368 La comanda 10
VL40X11540 20 115 34.5 / 762 46.0 / 1017 51.8 / 1144 57.5 / 1271 La comanda 10
VL25X11525 12.5 115 34.5 / 407 46.0 / 543 51.8 / 611 57.5 / 679 La comanda 10
VL32X11532 16 115 34.5 / 490 46.0 / 653 51.8 / 735 57.5 / 817 La comanda 10
VL50X11550 25 115 34.5 / 1590 46.0 / 2121 51.8 / 2386 57.5 / 2651 La comanda 5
VL50X12750 25 127 38.1 / 1608 50.8 / 2144 57.2 / 2412 63.5 / 2680 La comanda 5
VL32X12732 16 127 38.1 / 484 50.8 / 645 572 / 726 63.5 / 806 La comanda 10
VL20X12720 10 127 38.1 / 225 50.8 / 300 57.2 / 337 63.5 / 375 La comanda 10
VL40X12740 20 127 38.1 / 747 50.8 / 996 57.2 / 1120 63.5 / 1245 La comanda 5
VL25X12725 12.5 127 38.1 / 404 50.8 / 538 57.2 / 606 63.5 / 673 La comanda 10
VL32X13932 16 139 41.7 / 484 55.6 / 645 62.6 / 726 69.5 / 806 La comanda 10
VL20x13920 10 139 41.7 / 225 55.6 / 300 62.6 / 338 69.5 / 375 La comanda 10
VL25X13925 12.5 139 41.7 / 400 55.6 / 534 62.6 / 600 69.5 / 667 La comanda 10
VL50X13950 25 139 41.7 / 1593 55.6 / 2124 62.6 / 2389 69.5 / 2655 La comanda 5
VL40X13940 20 139 41.7 / 738 55.6 / 984 62.6 / 1107 69.5 / 1230 La comanda 5
VL20x15220 10 152 45.6 / 223 60.8 / 298 68.4 / 335 76.0 / 372 La comanda 10
VL50X15250 25 152 45.6 / 1564 60.8 / 2085 68.4 / 2346 76.0 / 2607 La comanda 2
VL32X15232 16 152 45.6 / 483 60.8 / 644 68.4 / 725 76.0 / 806 La comanda 10
VL40X15240 20 152 45.6 / 739 60.8 / 985 68.4 / 1108 76.0 / 1231 La comanda 5
VL50X17850 25 178 53.4 / 1570 71.2 / 2093 80.1 / 2355 89.0 / 2617 La comanda 2
VL40X17840 20 178 53.4 / 732 71.2 / 975 80.1 / 1097 89.0 / 1219 La comanda 5
VL32X17832 16 178 53.4 / 481 71.2 / 641 80.1 / 721 89.0 / 801 La comanda 5
VL25X17825 12.5 178 53.4 / 406 71.2 / 541 80.1 / 609 89.0 / 676 La comanda 10
VL40X20340 20 203 60.9 / 749 81.2 / 999 91.4 / 1124 101 / 1248 La comanda 5
VL50X20350 25 203 60.9 / 1553 81.2 / 2071 91.4 / 2329 101 / 2588 La comanda 2
VL32X20332 16 203 60.9 / 475 81.2 / 633 91.4 / 713 102/792 La comanda 5
VL25X20325 12.5 203 60.9 / 408 81.2 / 544 91.4 / 612 102 / 680 La comanda 10
VL40X25440 20 254 76.2 / 747 102 / 996 114 / 1120 127 / 1245 La comanda 2
VL32X25432 16 254 76.2 / 488 102 / 650 114 / 732 127/813 La comanda 5
VL50X25450 25 254 76.2 / 1570 102 / 2093 114 / 2355 127/2616 La comanda 2
VL20X30520 10 305 91.5 / 229 122 / 305 137 / 343 153 / 381 La comanda 10
VL40X30540 20 305 91.5 / 759 122 / 1013 137 / 1139 152 / 1266 La comanda 2
VL25X30525 12.5 305 91.5 / 403 122 / 537 137 / 604 153 / 671 La comanda 5
VL32X30532 16 305 91.5 / 485 122 / 647 137 / 727 153/808 La comanda 5
VL50X30550 25 305 91.5 / 1574 122 / 2098 137 / 2361 152/2623 La comanda 2
VL25X2525 12.5 25 7.5 / 404 10.0 / 539 11.3 / 606 12.5 / 674 La comanda 50
VL20X2520 10 25 7.5 / 221 10.0 / 294 11.3 / 331 12.5 / 368 La comanda 50
VL20X3220 10 32 9.6 / 217 12.8 / 289 14.4 / 325 16.0 / 362 La comanda 50
VL25X3225 12.5 32 9.6 / 405 12.8 / 540 14.4 / 608 16.0 / 675 La comanda 25
VL20X3820 10 38 11.4 / 212 15.2 / 283 17.1 / 318 19.0 / 353 La comanda 25
VL32X3832 16 38 11.4 / 491 15.2 / 655 17.1 / 737 19.0/819 In stoc 20
VL25X3825 12.5 38 11.4 / 408 15.2 / 544 17.1 / 612 19.0 / 680 La comanda 25
VL25X4425 12.5 44 13.2 / 414 17.6 / 553 19.8 / 622 22.0 / 691 La comanda 25
VL32X4432 16 44 13.2 / 492 17.6 / 656 19.8 / 739 22.0/821 La comanda 20
VL20X4420 10 44 13.2 / 207 17.6 / 276 19.8 / 311 22.0 / 345 La comanda 25
VL25X5125 12.5 51 15.3 / 413 20.4 / 551 23.0 / 620 25.5 / 689 La comanda 25
VL32X5132 16 51 15.3 / 496 20.4 / 661 23.0 / 744 25.5/826 In stoc 20
VL20X5120 10 51 15.3 / 210 20.4 / 279 23.0 / 314 25.5 / 349 La comanda 25
VL40X5140 20 51 15.3 / 736 20.4 / 981 23.0 / 1104 25.5 / 1227 La comanda 20
VL25X6425 12.5 64 19.2 / 415 25.6 / 553 28.8 / 622 32.0 / 691 La comanda 25
VL50X6450 25 64 19.2 / 1657 25.6 / 2209 28.8 / 2485 32.0 / 2762 La comanda 5
VL40X6440 20 64 19.2 / 753 25.6 / 1004 28.8 / 1129 32.0 / 1254 La comanda 10
VL20X6420 10 64 19.2 / 217 25.6 / 289 28.8 / 325 32.0 / 362 La comanda 25
VL32X6432 16 64 19.2 / 490 25.6 / 653 28.8 / 734 32.0 / 816 La comanda 20
VL50X7650 25 76 22.8 / 1610 30.4 / 2146 34.2 / 2415 38.0 / 2683 La comanda 5
VL25X7625 12.5 76 22.8 / 413 30.4 / 550 34.2 / 619 38.0 / 688 In stoc 20
VL20X7620 10 76 22.8 / 223 30.4 / 298 34.2 / 335 38.0 / 372 La comanda 25
VL40X7640 20 76 22.8 / 759 30.4 / 1012 34.2 / 1139 38.0 / 1265 La comanda 10
VL32X7632 16 76 22.8 / 492 30.4 / 657 34.2 / 739 38.0 / 821 La comanda 20
VL40X8940 20 89 26.7 / 758 35.6 / 1011 40.1 / 1137 44.5 / 1264 In stoc 10
VL25X8925 12.5 89 26.7 / 406 35.6 / 541 40.1 / 609 44.5 / 676 La comanda 20
VL20X8920 10 89 26.7 / 222 35.6 / 295 40.1 / 332 44.5 / 369 In stoc 20
VL32X8932 16 89 26.7 / 483 35.6 / 644 40.1 / 725 44.5 / 805 In stoc 10
VL50X8950 25 89 26.7 / 1597 35.6 / 2129 40.1 / 2395 44.5 / 2661 La comanda 5
20
