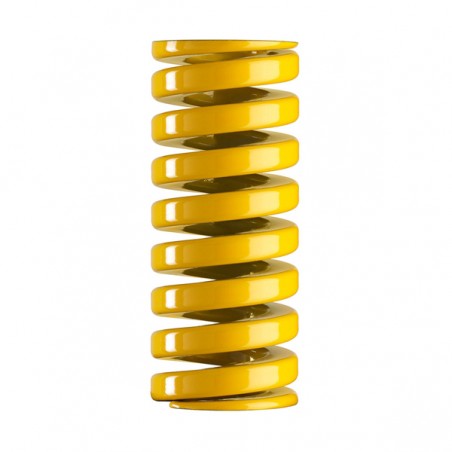

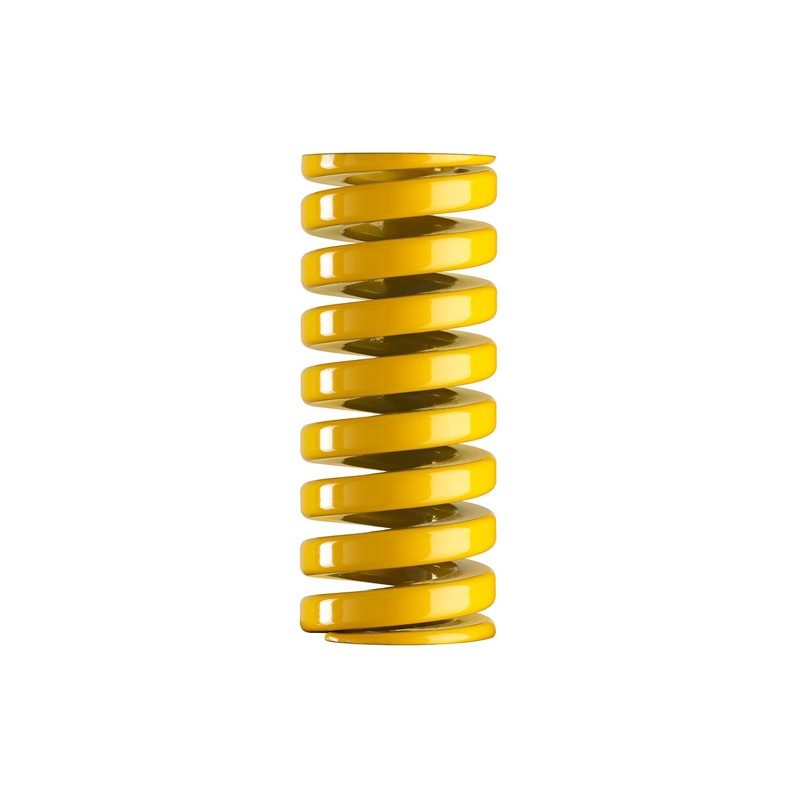

Arc GALBEN ISO 10243 - sarcina foarte mare

Mareste imaginea

Arc GALBEN ISO 10243 - sarcina foarte mare

Brand: Special Springs

Produse similare
Arc VERDE DESCHIS - sarcina foarte mica
Arc ROSU ISO 10243 - sarcina mare
Arc cu spira rotunda VERDE
Arc cu spira rotunda nevopsit

Arc GALBEN ISO 10243 - sarcina foarte ma

Pagina catalog - Arc GALBEN

Dimensiune 474.31k

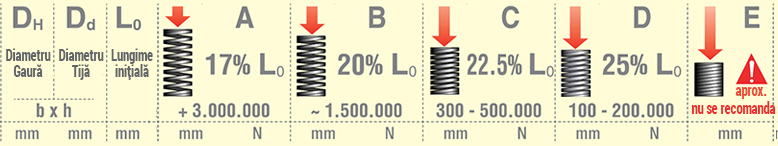

Cod produs DH mm Dd mm L0 mm A mm/N B mm/N C mm/N D mm/N Stoc Mod ambalare Cantitate
G16X10216 8 102 17.3 / 443 20.4 / 522 23.0 / 588 25.5 / 653 In stoc 1
G13X10212.5 6.3 102 17.3 / 220 20.4 / 259 23.0 / 291 25.5 / 324 In stoc 1
G50X10250 25 102 17.3 / 7007 20.4 / 8262 23.0 / 9295 25.5 / 10328 In stoc 1
G20X10220 10 102 17.3 / 1048 20.4 / 1236 23.0 / 1391 25.5 / 1545 La comanda 1
G40X10240 20 102 17.3 / 4861 20.4 / 5732 23.0 / 6449 25.5 / 7166 In stoc 1
G63X10263 38 102 17.3 / 12110 20.4 / 14280 23.0 / 16065 25.5 / 17850 In stoc 1
G32X10232 16 102 17.3 / 2682 20.4 / 3162 23.0 / 3557 25.5 / 3953 La comanda 1
G25X10225 12.5 102 17.3 / 1666 20.4 / 1965 23.0 / 2210 25.5 / 2456 In stoc 1
G25X11525 12.5 115 19.6 / 1680 23.0 / 1971 25.9 / 2217 28.8 / 2468 La comanda 1
G50X11550 25 115 19.6 / 6899 23.0 / 8096 25.9 / 9108 28.8 / 10138 In stoc 1
G32X11532 16 115 19.6 / 2744 23.0 / 3220 25.9 / 3623 28.8 / 4032 In stoc 1
G16X11516 8 115 19.6 / 439 23.0 / 515 25.9 / 580 28.8 / 645 In stoc 1
G63X11563 38 115 19.6 / 12152 23.0 / 14260 25.9 / 16043 28.8 / 17860 La comanda 1
G20X11520 10 115 19.6 / 1039 23.0 / 1219 25.9 / 1371 28.8 / 1526 In stoc 1
G40X11540 20 115 19.6 / 4802 23.0 / 5635 25.9 / 6339 28.8 / 7056 In stoc 1
G32X12732 16 127 21.6 / 2678 25.4 / 3150 28.6 / 3543 31.8 / 3943 In stoc 1
G20X12720 10 127 21.6 / 1026 25.4 / 1207 28.6 / 1357 31.8 / 1511 In stoc 1
G25X12725 12.5 127 21.6 / 1648 25.4 / 1938 28.6 / 2180 31.8 / 2426 In stoc 1
G40X12740 20 127 21.6 / 4774 25.4 / 5613 28.6 / 6315 31.8 / 7028 La comanda 1
G63X12763 38 127 21.6 / 12204 25.4 / 14351 28.6 / 16145 31.8 / 17967 La comanda 1
G50X12750 25 127 21.6 / 6826 25.4 / 8026 28.6 / 9030 31.8 / 10049 La comanda 1
G25X13925 12.5 139 23.6 / 1558 27.8 / 1835 31.3 / 2066 34.8 / 2297 La comanda 1
G40X13940 20 139 23.6 / 4036 27.8 / 4754 31.3 / 5352 34.8 / 5951 La comanda 1
G20X13920 10 139 23.6 / 1015 27.8 / 1195 31.3 / 1346 34.8 / 1496 La comanda 1
G50X13950 25 139 23.6 / 6820 27.8 / 8034 31.3 / 9046 34.8 / 10057 La comanda 1
G32X13932 16 139 23.6 / 2643 27.8 / 3114 31.3 / 3506 34.8 / 3898 La comanda 1
G25X15225 12.5 152 25.8 / 1638 30.4 / 1930 34.2 / 2172 38.0 / 2413 La comanda 1
G20X15220 10 152 25.8 / 1006 30.4 / 1186 34.2 / 1334 38.0 / 1482 In stoc 1
G50X15250 25 152 25.8 / 6166 30.4 / 7266 34.2 / 8174 38.0 / 9082 In stoc 1
G63X15263 38 152 25.8 / 11816 30.4 / 13923 34.2 / 15664 38.0 / 17404 La comanda 1
G32X15232 16 152 25.8 / 2632 30.4 / 3101 34.2 / 3488 38.0 / 3876 In stoc 1
G40X15240 20 152 25.8 / 4334 30.4 / 5107 34.2 / 5746 38.0 / 6384 La comanda 1
G25X17825 12.5 178 30.3 / 1633 35.6 / 1919 40.1 / 2159 44.5 / 2399 La comanda 1
G63X17863 38 178 30.3 / 11635 35.6 / 13670 40.1 / 15379 44.5 / 17088 La comanda 1
G40X17840 20 178 30.3 / 4545 35.6 / 5325 40.1 / 6015 44.5 / 6675 La comanda 1
G32X17832 16 178 30.3 / 2672 35.6 / 3140 40.1 / 3532 44.5 / 3925 In stoc 1
G50X17850 25 178 30.3 / 6515 35.6 / 7654 40.1 / 8611 44.5 / 9568 La comanda 1
G25X20325 12.5 203 34.5 / 1622 40.6 / 1908 45.7 / 2147 50.8 / 2388 In stoc 1
G50X20350 25 203 34.5 / 6452 40.6 / 7592 45.7 / 8541 50.8 / 9500 La comanda 1
G32X20332 16 203 34.5 / 2622 40.6 / 3086 45.7 / 3471 50.8 / 3861 La comanda 1
G40X20340 20 203 34.5 / 4554 40.6 / 5359 45.7 / 6029 50.8 / 6706 La comanda 1
G63X20363 38 203 34.5 / 11627 40.6 / 13682 45.7 / 15392 50.8 / 17120 La comanda 1
G50X25450 25 254 43.2 / 6610 50.8 / 7772 57.2 / 8744 63.5 / 9716 In stoc 1
G32X25432 16 254 43.2 / 2627 50.8 / 3089 57.2 / 3475 63.5 / 3861 La comanda 1
G40X25440 20 254 43.2 / 4622 50.8 / 5436 57.2 / 6115 63.5 / 6795 La comanda 1
G63X25463 38 254 43.2 / 11362 50.8 / 13360 57.2 / 15030 63.5 / 16701 La comanda 1
G50X30550 25 305 51.9 / 6591 61.0 / 7747 68.6 / 8715 76.3 / 9690 La comanda 1
G20X30520 10 305 51.9 / 1100 61.0 / 1293 68.6 / 1455 76.3 / 1618 La comanda 1
G16X30516 8 305 51.9 / 436 61.0 / 512 68.6 / 576 76.3 / 641 La comanda 1
G13X30512.5 6.3 305 51.9 / 223 61.0 / 262 68.6 / 295 76.3 / 328 La comanda 1
G10X30510 5 305 51.9 / 135 61.0 / 159 68.6 / 178 76.3 / 198 La comanda 1
G40X30540 20 305 51.9 / 4557 61.0 / 5356 68.6 / 6025 76.3 / 6699 La comanda 1
G32X30532 16 305 51.9 / 2543 61.0 / 2989 68.6 / 3363 76.3 / 3739 In stoc 1
G25X30525 12.5 305 51.9 / 1604 61.0 / 1885 68.6 / 2121 76.3 / 2358 La comanda 1
G13X2512.5 6.3 25 4.3 / 252 5.0 / 293 5.6 / 329 6.3 / 369 In stoc 1
G10X2510 5 25 4.3 / 158 5.0 / 184 5.6 / 207 6.3 / 232 In stoc 1
G20X2520 10 25 4.3 / 1260 5.0 / 1465 5.6 / 1648 6.3 / 1846 In stoc 1
G25X2525 12.5 25 4.3 / 1974 5.0 / 2295 5.6 / 2570 6.3 / 2892 In stoc 1
G16X2516 8 25 4.3 / 507 5.0 / 590 5.6 / 664 6.3 / 743 In stoc 1
G16X3216 8 32 5.4 / 481 6.4 / 570 7.2 / 641 8.0 / 712 In stoc 1
G10X3210 5 32 5.4 / 151 6.4 / 179 7.2 / 201 8.0 / 223 La comanda 1
G25X3225 12.5 32 5.4 / 2020 6.4 / 2394 7.2 / 2693 8.0 / 2992 La comanda 1
G13X3212.5 6.3 32 5.4 / 237 6.4 / 281 7.2 / 316 8.0 / 351 In stoc 1
G20X3220 10 32 5.4 / 1210 6.4 / 1434 7.2 / 1613 9.5 / 1682 In stoc 1
G20X3820 10 38 6.5 / 1151 7.6 / 1345 8.6 / 1513 9.5 / 1682 La comanda 1
G16X3816 8 38 6.5 / 469 7.6 / 548 8.6 / 616 9.5 / 685 In stoc 1
G32X3832 16 38 6.5 / 3120 7.6 / 3648 8.6 / 4128 9.5 / 4560 In stoc 1
G13X3812.5 6.3 38 6.5 / 234 7.6 / 274 8.6 / 308 9.5 / 342 In stoc 1
G25X3825 12.5 38 6.5 / 1950 7.6 / 2280 8.6 / 2580 9.5 / 2850 La comanda 1
G10X3810 5 38 6.5 / 154 7.6 / 180 8.6 / 203 9.5 / 225 In stoc 1
G13X4412.5 6.3 44 7.5 / 227 8.8 / 267 9.9 / 300 11.0 / 333 La comanda 1
G10X4410 5 44 7.5 / 144 8.8 / 169 9.9 / 190 11.0 / 211 La comanda 1
G16X4416 8 44 7.5 / 457 8.8 / 536 9.9 / 603 11.0 / 670 In stoc 1
G25X4425 12.5 44 7.5 / 1830 8.8 / 2147 9.9 / 2416 11.0 / 2684 In stoc 1
G20X4420 10 44 7.5 / 1118 8.8 / 1311 9.9 / 1475 11.0 / 1639 La comanda 1
G32X4432 16 44 7.5 / 2925 8.8 / 3432 9.9 / 3861 11.0 / 4290 In stoc 1
G40X5140 20 51 8.7 / 5464 10.2 / 6406 11.5 / 7206 12.8 / 8038 In stoc 1
G13X5112.5 6.3 51 8.7 / 228 10.2 / 267 11.5 / 301 12.8 / 335 In stoc 1
G25X5125 12.5 51 8.7 / 1810 10.2 / 2122 11.5 / 2392 12.8 / 2662 In stoc 1
G16X5116 8 51 8.7 / 455 10.2 / 533 11.5 / 600 12.8 / 669 In stoc 1
G10X5110 5 51 8.7 / 144 10.2 / 168 11.5 / 189 12.8 / 211 In stoc 1
G20X5120 10 51 8.7 / 1114 10.2 / 1306 11.5 / 1469 12.8 / 1638 In stoc 1
G32X5132 16 51 8.7 / 2784 10.2 / 3264 11.5 / 3680 12.8 / 4096 In stoc 1
G50X6450 25 64 10.9 / 7728 12.8 / 9075 14.4 / 10210 16.0 / 11344 La comanda 1
G13X6412.5 6.3 64 10.9 / 231 12.8 / 271 14.4 / 305 16.0 / 339 In stoc 1
G40X6440 20 64 10.9 / 5308 12.8 / 6234 14.4 / 7013 16.0 / 7792 In stoc 1
G20X6420 10 64 10.9 / 1079 12.8 / 1267 14.4 / 1426 16.0 / 1584 In stoc 1
G10X6410 5 64 10.9 / 144 12.8 / 169 14.4 / 190 16.0 / 211 La comanda 1
G16X6416 8 64 10.9 / 449 12.8 / 527 14.4 / 593 16.0 / 659 In stoc 1
G25X6425 12.5 64 10.9 / 1755 12.8 / 2061 14.4 / 2318 16.0 / 2576 In stoc 1
G32X6432 16 64 10.9 / 2934 12.8 / 3446 14.4 / 3876 16.0 / 4307 In stoc 1
G10X7610 5 76 12.9 / 141 15.2 / 166 17.1 / 186 19.0 / 207 In stoc 1
G63X7663 38 76 12.9 / 12280 15.2 / 14470 -- / -- -- / -- La comanda 1
G20X7620 10 76 12.9 / 1054 15.2 / 1242 17.1 / 1397 19.0 / 1552 In stoc 1
G25X7625 12.5 76 12.9 / 1690 15.2 / 1991 17.1 / 2240 19.0 / 2489 In stoc 1
G13X7612.5 6.3 76 12.9 / 221 15.2 / 260 17.1 / 292 19.0 / 325 In stoc 1
G32X7632 16 76 12.9 / 2825 15.2 / 3329 17.1 / 3745 19.0 / 4161 In stoc 1
G50X7650 25 76 12.9 / 7379 15.2 / 8694 17.1 / 9781 19.0 / 10868 In stoc 1
G16X7616 8 76 12.9 / 440 15.2 / 518 17.1 / 583 19.0 / 648 In stoc 1
G40X7640 20 76 12.9 / 4889 15.2 / 5761 17.1 / 6481 19.0 / 7201 In stoc 1
G13X8912.5 6.3 89 15.1 / 219 17.8 / 258 20.0 / 290 22.3 / 323 La comanda 1
G50X8950 25 89 15.1 / 7173 17.8 / 8455 20.0 / 9512 22.3 / 10593 In stoc 1
G20X8920 10 89 15.1 / 1049 17.8 / 1237 20.0 / 1392 22.3 / 1550 In stoc 1
G63X8963 38 89 15.1 / 12360 17.8 / 14580 -- / -- -- / -- In stoc 1
G25X8925 12.5 89 15.1 / 1676 17.8 / 1976 20.0 / 2220 22.3 / 2475 La comanda 1
G32X8932 16 89 15.1 / 2723 17.8 / 3209 20.0 / 3611 22.3 / 4021 La comanda 1
G16X8916 8 89 15.1 / 445 17.8 / 525 20.0 / 591 22.3 / 658 In stoc 1
G40X8940 20 89 15.1 / 4847 17.8 / 5714 20.0 / 6428 22.3 / 7158 La comanda 1
